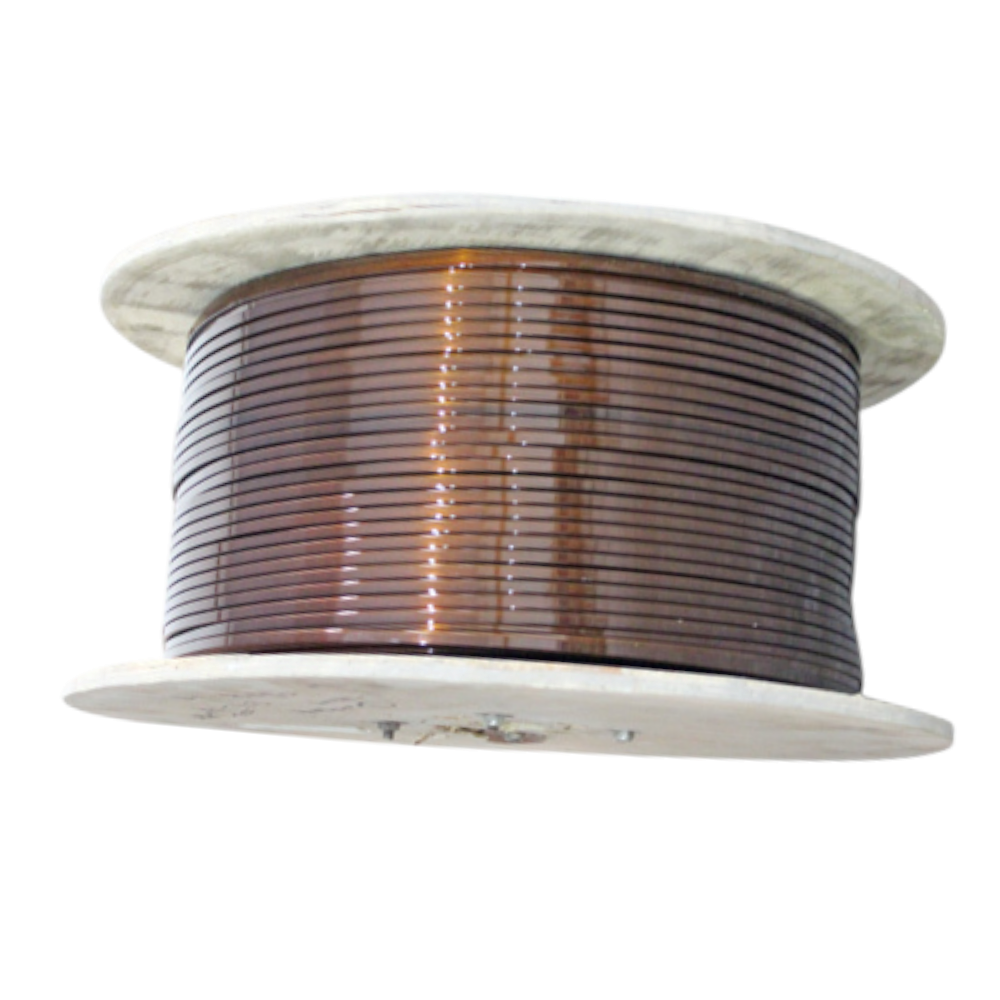

Enamelled Rectangular Flat Aluminium Strips

Enamelled Rectangular Flat Aluminium Strips

Product Details:

  • Shape Rectangular
  • Treatment Polished
  • Foil Type Roll
  • Use Construction
  • Color Brown
  • Warranty 1 Years
  • Click to View more
X

Enamelled Rectangular Flat Aluminium Strips Price And Quantity

  • 500 Kilograms

Enamelled Rectangular Flat Aluminium Strips Product Specifications

  • Roll
  • Rectangular
  • Polished
  • Brown
  • 1 Years
  • Construction

Enamelled Rectangular Flat Aluminium Strips Trade Information

  • 10 Kilograms Per Month
  • 1 Week

Product Description

Enameled Aluminum Wires

Owing Vast experience in this domain, we are manufacturing and supplying a wide array of Enameled Aluminum Wires or Strips. This wire or strip is wrapped in a tight coil when an electric charge is applied, the wires generate the magnetic field as it is made nu utilizing. The breakdown potential of this wire depends on the dimension of the covering, which can be divided into 3 types that is Grade 1, Grade 2 and Grade 3. Also, the higher grades have thicker insulation and therefore higher breakdown of voltages occur. Enameled Aluminum Wires/Strips can be availed from us at reasonable cost.

Other Details:

Material:-
Material used to make Enameled aluminum wires/strips:

  • Modern Flat Enameled Aluminum Magnet Wire normally utilizes one to three layers of polymer film protection, frequently of two unique constitutions, to give an extreme, consistent protecting layer.
  • Magnet wire protecting movies use (all together of expanding temperature extend) polyvinyl formal or Form-var (PVF), polyurethane, poly-amide (PUW), polyester (PEW), polyester-polyimide (EIW), poly-amide-polyimide (or amide-imide) (AI-EIW), and polyimide (AIW). Polyimide protected magnet wire is equipped for operation at up to 250C.

Kinds of Wires:-

Types of Enameled aluminum wires/strips:

  • Rectangular Aluminum wire/Strip
  • Flat Aluminum Wire/Strip
  • Round Enameled Aluminum Wire/Strip
Variations of service life and temperature:
  • The temperature class indicates the temperature of the wire where it has a 20,000 hour service life. At lower temperatures the service life of the wire is longer (about a factor 2 for every 10 C lower temperature). Common temperature classes are 105 C, 130 C, 155 C, 180 C and 220 C

Applications:

Rectangular Aluminum Magnet Wire

  • Rectangular Aluminum Magnet Wire are used as the wire in
  • Electromagnets that use electricity to generate a magnetic field

Flat aluminum wires/strips

These are used in:

  • Automobiles
  • Motors
  • Transformers
  • Industrial machinery

Round Enameled Aluminum Wire


These wire are found in smaller devices and home appliances such as:

  • Computers
  • Televisions

Specification :

Temp. Class

Type of Insulation

Size Range

Specification

'B', 105C/120C

Polyvinyl Acetal (PVA/PVF)

Area:
3 - 56 Sq. mm
Min. Size:
3x1 mm (Cu)
3x2 mm (Al)
Max. Size:
14 x 4 mm

IEC-60317-18
NEMA MW-18

'F', 155C

Polyester

IEC-60317-16
IS-13730-16

'H', 180C

Polyesterimide

IEC-60317-28
IS-13730-28

'C', 200C

Polyesterimide (base coat)
+
Polyamide-imide (top coat)

IEC-60317-29
IS-13730-29/
NEMA MW- 36
